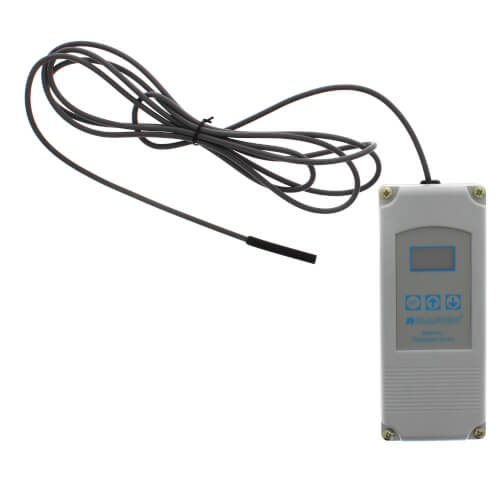

Ranco Temperature Controller

  • Sale
  • Regular price $285.12
Shipping calculated at checkout.


Ranco ETC141000 Nema 4x

  • Anti-short cycle compressor delay for cooling applications
  • Wide temperature range (-30°F to 220°F) (-34.4°C to 104.4°C)
  • Wide differential adjustment (1°F to 30°F) (-17°C to -1°C)
  • LCD read-out for sensor temperature, control settings, and relay status
  • High Amp output relay (FLA 16 Amps @ 120V AC and 8 Amps @ 208/240V AC) single stage
  • EEPROM memory retains control settings during power outages
  • Keypad lockout to prevent end-user alteration of settings
  • 8 foot lead with sensor is extendable up to 400 feet using 18 or 22-gauge thermostat wire
  • Easy 4-step set-up
  • Heavy-duty relay is 1 HP rated
  • Selectable °F or °C heating/cooling modes
  • Single and two stage models
  • NEMA 1 case and cover
  • NEMA 4X models available
  • White backlight on display
  • Sensor rated IP67 for dust and water (<1m) resistance



Replacement Temp probe:

https://shop.foundationmechanical.org/products/ranco-replacement-tempertature-probe
